Project Description

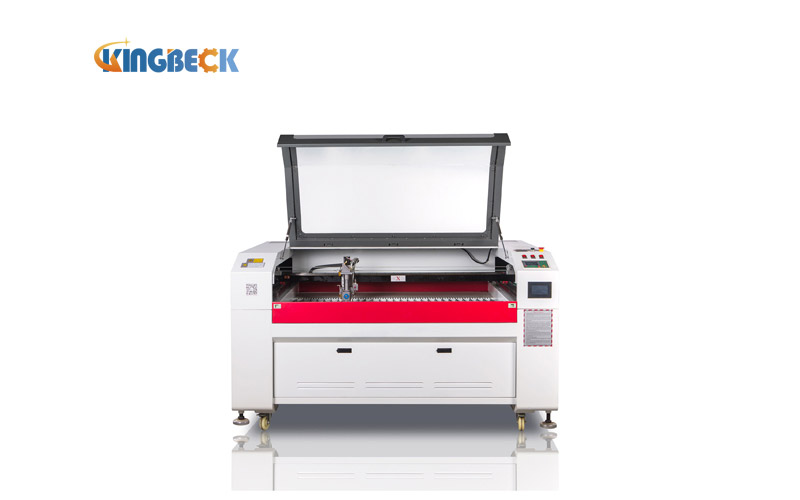

Machine Photos
Machine Feature
Multifunction Metal Nonmetal Laser Cutting Machine is new type cnc laser machine, it is with ball screw transmission, it can make the cutting effect better than rack gear transmission models.
Metal Nonmetal Laser Cutting Machine has two laser cutting heads, one is professional for metal cutting , another one is used for laser engraving, that means this machine can not only cut both metal and nonmetal material but also can engrave on different materials, one machine, three functions, that is amazing.
1) Auto laser head: Protect the laser lens and prolong the machine life time.
2) Transmission method: Yaskawa servo motor, high quality to make sure the machine could work stably. Taiwan Hiwin linear guide rail, make sure engraving or cutting result in high precision.
3) Excellent machine parts: All the machine parts has been tested for many years, make sure the machine could work with good condition, reduce the consuming speed of laser tube and power supply, so the machine working life is longer.
Machine Parameters
| Model | KB1390/1530/1325 |
| working size | 1300mm*900mm/ 1500mm*3000mm/ 1300mm*2500mm |
| Laser power | 150W / 180W / 280W / 300W Optional |
| Cutting speed | 0-400m/s |
| Reposition accuracy | ±0.05mm |
| Power Supply | AC220±10%,50-60Hz,30A max |
| Working temperature | 0 - 45°C |
| Working humidity | 5%-95% |
| Minimum letter size | English:1 x 1mm Chinese:2 x 2mm |
| Supported file format | BMP, HPGL, PLT, DST, DXP, and AI |
| Laser tube cooling type | Water-cooling chiller CW5000--CW6000 |
| Other auxiliary equipment | Exhaust-fans and air-exhaust pipe |
| Laser control software | Ruida |
| Compatible software | CorelDraw,AutoCAD,Photoshop |
| Laser tube type | Sealed CO2 glass laser tube |
| Driving Motor | Stepper motor/ Panasonic Servo motor |
| Smoke Exhausting | By Funnel |
Cutting Thickness
| Stainless Steel | Carton Steel | Acrylic | Plywood | MDF |
|---|---|---|---|---|
| 0-3mm | 0-3mm | 0-30mm | 0-22mm | 0-22mm |
Application Industry
1. Craft industry: carved patterns and text on wood, bamboo, ivory, bone, leather, marble, shells and other materials.
2. Mainly used for large plastic characters cutting, color plate engraving, plexiglass engraving cutting, sign engraving, crystal, trophy engraving, sculpture and other licensing authority.
3. Leather clothing industry: for complex text graphics engraving on leather, synthetic leather, artificial leather, cloth, fur, cut, carved hollow other processing. Clothing, underwear, furniture, gloves, handbags, shoes, hats, toys and car cut flower industry, carving, beyond fashion, show personality.
4. Model industry:Metal cutting, production of construction sand table models, ABC plate cutting, MLB cutting.
5. Packaging Industry: Engraving printed rubber plate, plastic plate, double plate, cutter knife bench.
6. Other industries: marble, granite, glass, crystal and other decorative materials carving marks, paper cutting, greeting cards and other paper craft cutting.
7. Product identification industry: equipment nameplate, marking and other security products
Machine Main Parts
Metal Nonmetal Laser Cutting Head
It can cut metal and nonmetal products by changing different cutting nozzles
Yongli CO2 Laser Tube
180W/280W/300W is optinal according to your required cutting thickness.
Multi function Ruida Control Panel
One control paner for both metal and nonmetal cutting.
Machine Electric Cabinet
Laser source+control card+Yako drivers.

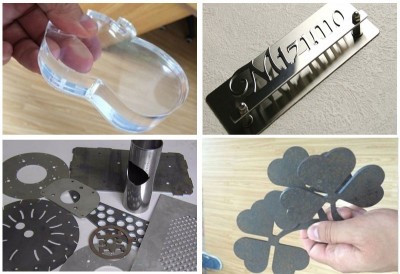

Working Samples
