Metal and Wood/Acrylicl Laser Cutting Machine

1. Outstanding cutting cross section, high precision, good stability, satisfying the process demands of precision parts. Dynamic performance is stable, able to work for long time.

2. Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic , wood, plywood etc.

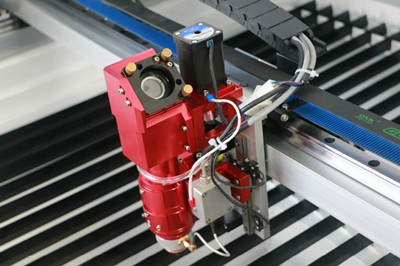

3.  Laser cutting head with auto focusing system can adjust its height along the metal sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handling. Flat and wavy steel sheets can be cut with this machine.

4. 1300*2500mm/1300*900mm working size, 150w/180w /280W/ 300W CO2 laser tube, able to cut most of metal and non-metal material by one machine.

5.  Water cooling system (S&A Brand CW-5200 for 150w and 180w tube, S&A Brand CW-6000 for 280w and 300w tube) automatically controls the water temperature, cools and protects the laser tube.

6.  Japan ONK belt transmission driven by stepper motors, greatly increased the machine cutting precision.

7.  Air pump, protects the material being cut from fire and helps to get better effect. If cut steel, oxygen is necessary.

8. Exhaust fan and pipes, remove dust and smoke to protect optical parts and the user.

9.  Ruida controller system. including 6332M control board, front panel and Metalcut software. Machine is able to work without connecting to a computer.

KB-1325 280W metal and nonmetal laser cutting machine can cut stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF ,wood and other materials

280-watt laser power is able to cut:
– non-metal: 30mm acrylic, 20mm wood and plywood, 15mm MDF, cloth, leather, rubber, PVC, etc, and
– metal: 2mm carbon steel, mild steel, stainless steel and galvanized steel.
