Auto Feeding Laser Fabric Cutting Machine
Auto Feeding Laser Fabric Cutting Machine Features
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth / fabric / leather / garment.
Auto Feeding Laser Fabric Cutting Machine Parameters
| Model | KB-1610 |
| Working Area | 1600*1000mm |
| Laser Power | 60w / 80w / 100w / 130w / 150w |
| Laser Type | CO2 Sealed Laser Tube, 10.6μm |
| Cooling Type | Water Cooling |
| Engraving Speed | 0-60000 mm/min |
| Cutting Speed | 0-40000 mm/min |
| Laser Output Control | 0-100% set by oftware |
| Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0 mm |
| Highest Scanning Precision | 4000DPI |
| Locating Accuracy | ≤+0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS, etc |
| Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc. |
| Color Separation | Yes |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipment | Exhaust Fan and Air Exhaust Pipe |
| Power Supply | AC110V/220V + 10%, 50HZ/60HZ |
| Working Environment | Temperature: 0-45C, Humidity 5-95% ( No Condensate Water ) |
Auto Feeding Laser Fabric Cutting Machine Application
- It’s widely used in garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving, jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.
- Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting, rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving, Gum engraving, EVA materials engraving, paper engraving and cutting.
- Wood material: wood engraving and cutting, MDF engraving, plywood cutting.

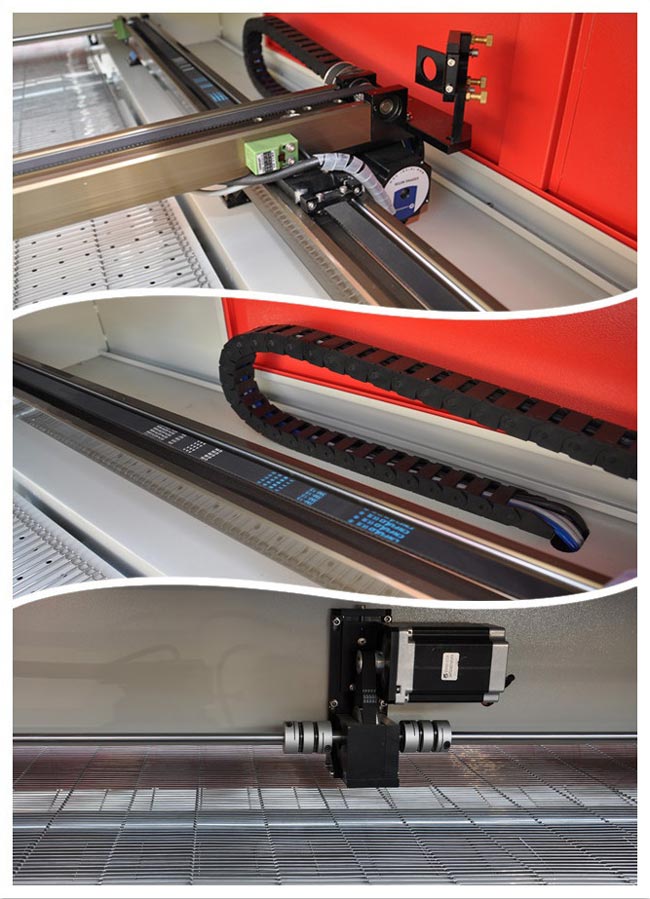

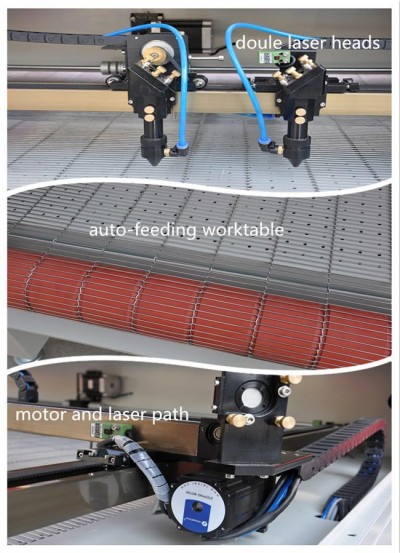

Laser Fabric Cutting Machine Main Parts
